Mast Mount
-

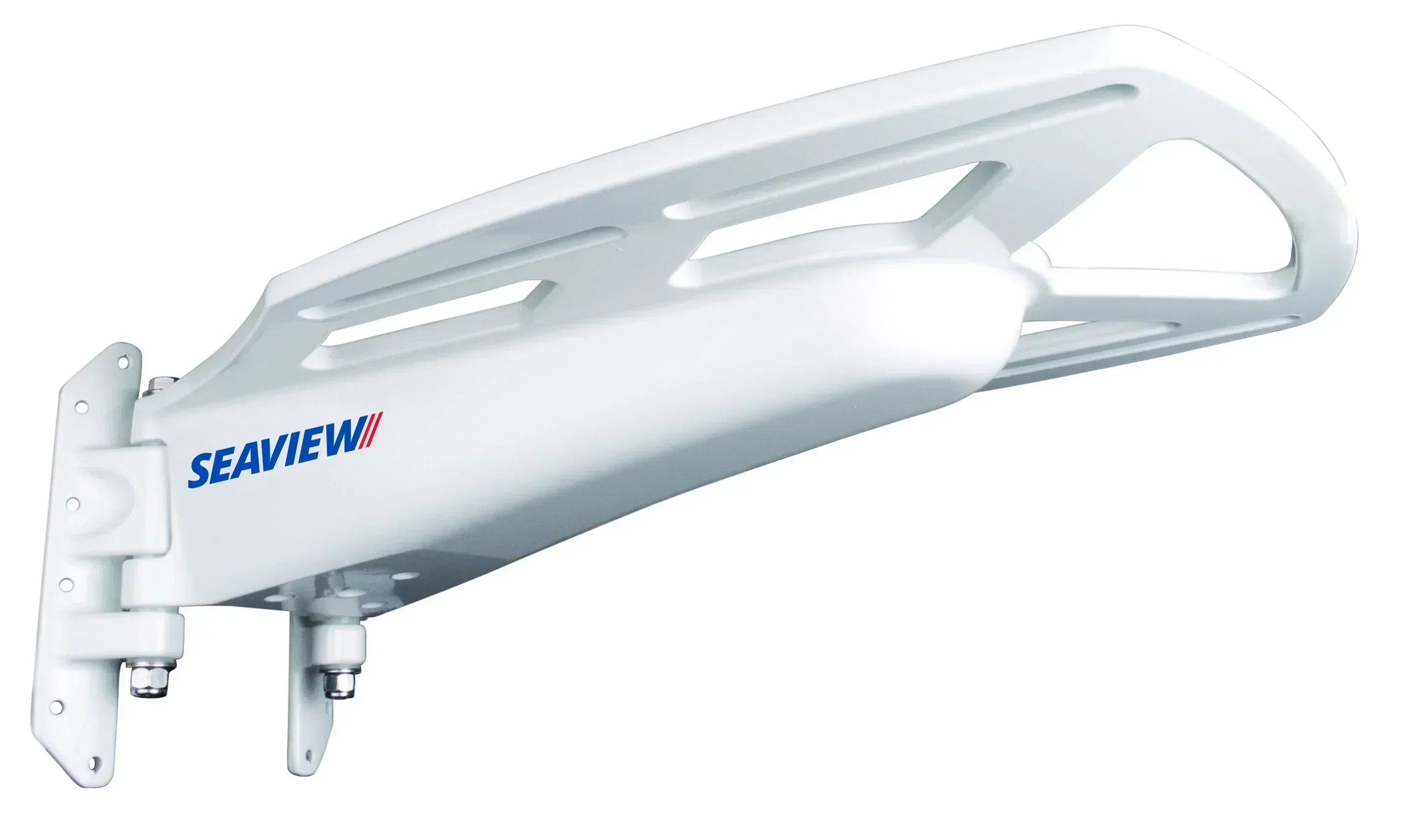

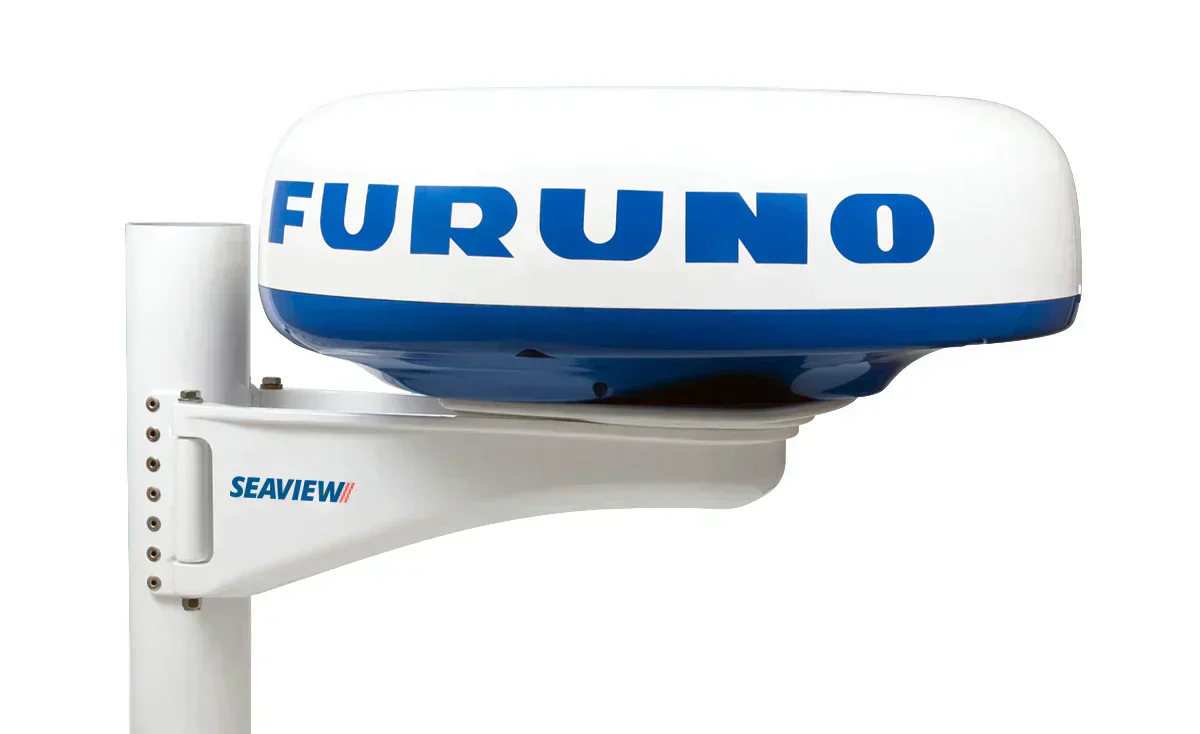

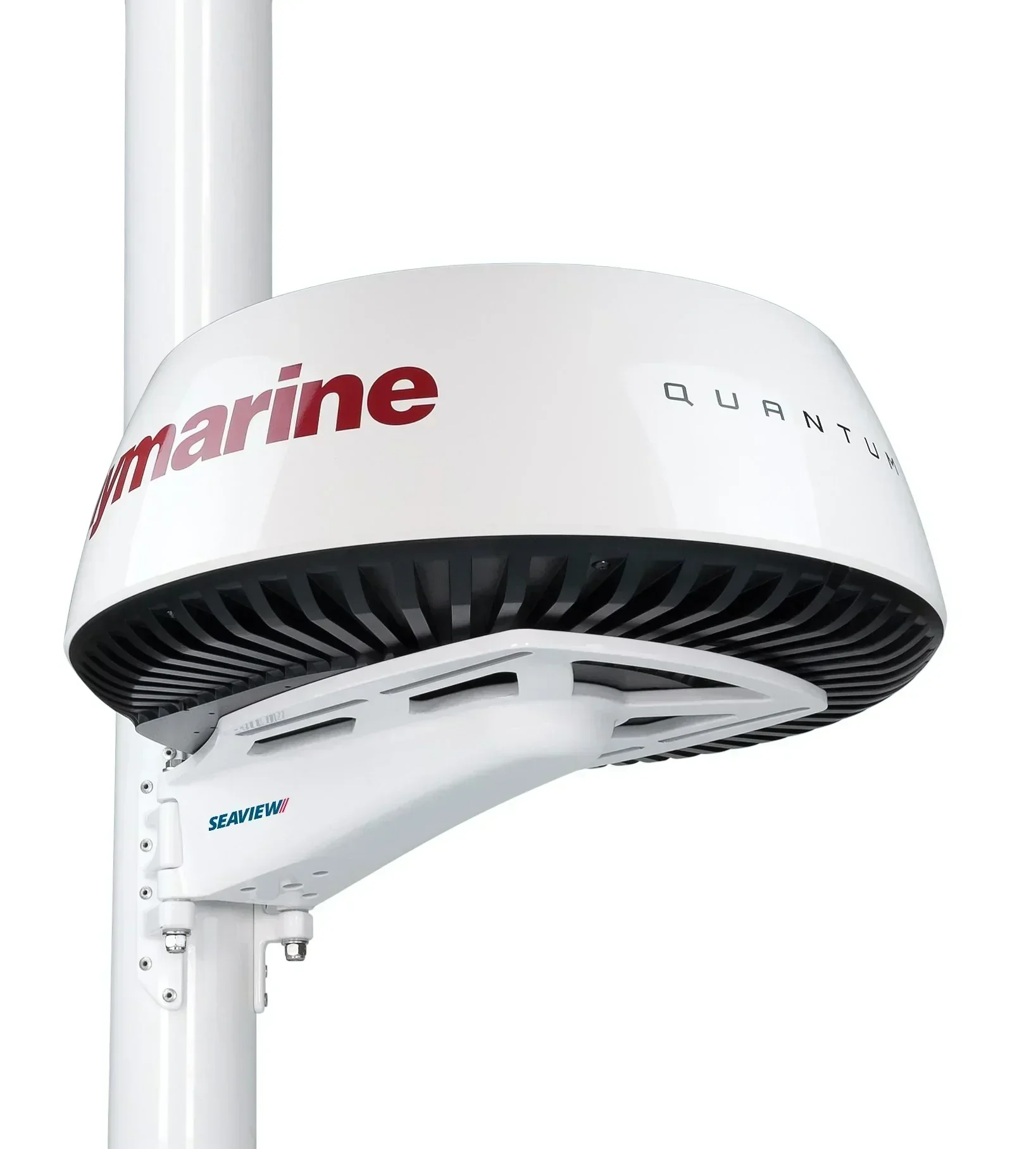

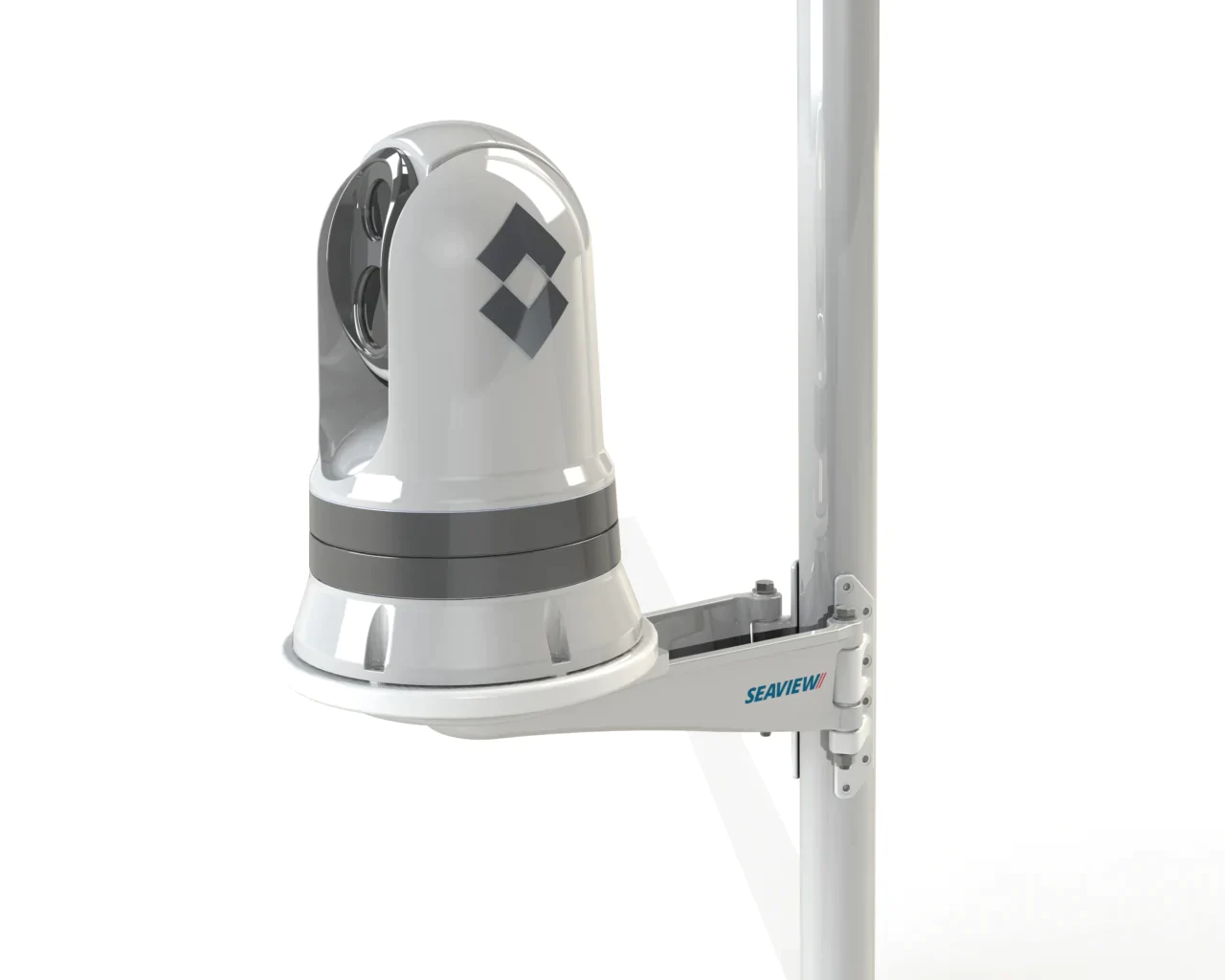

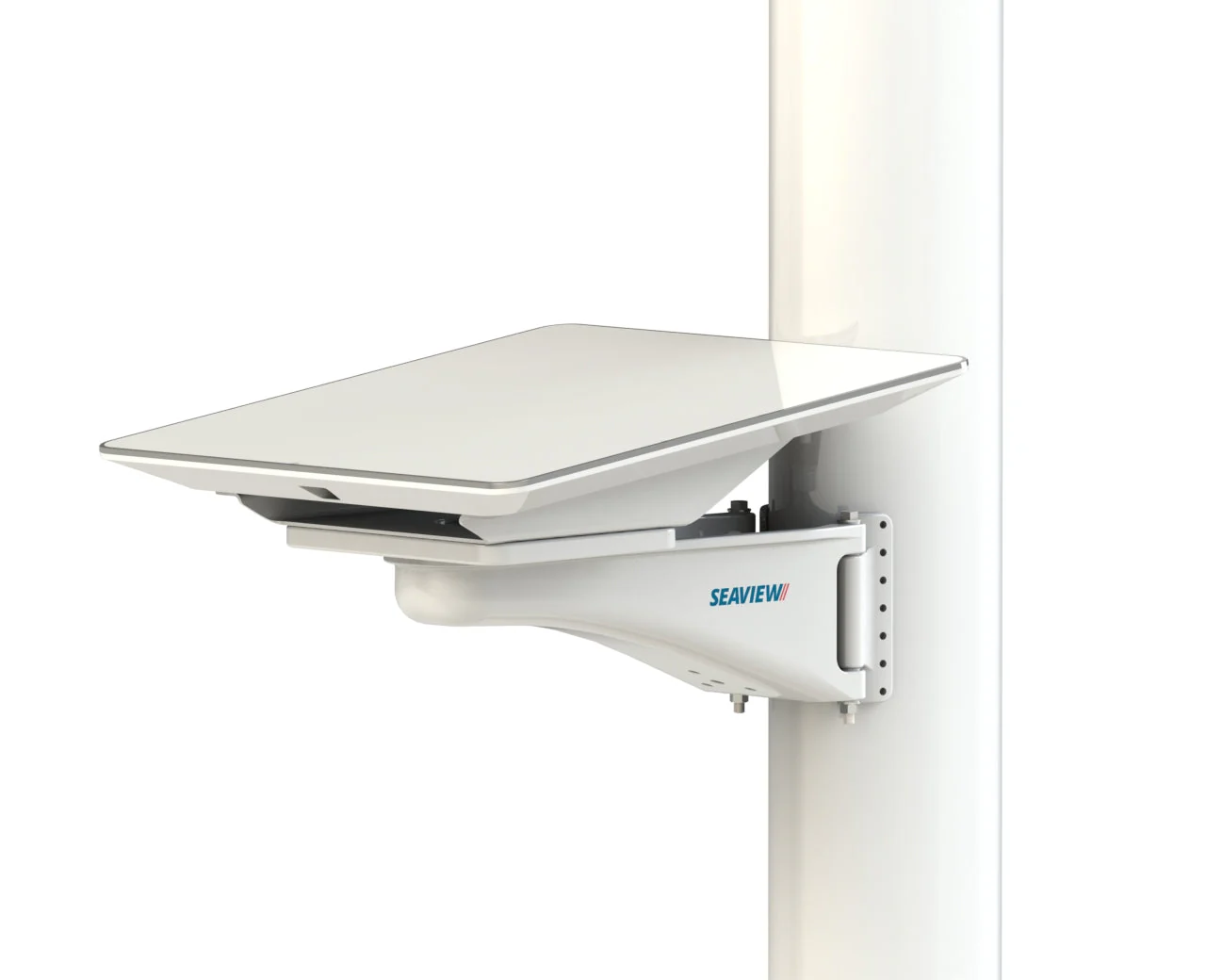

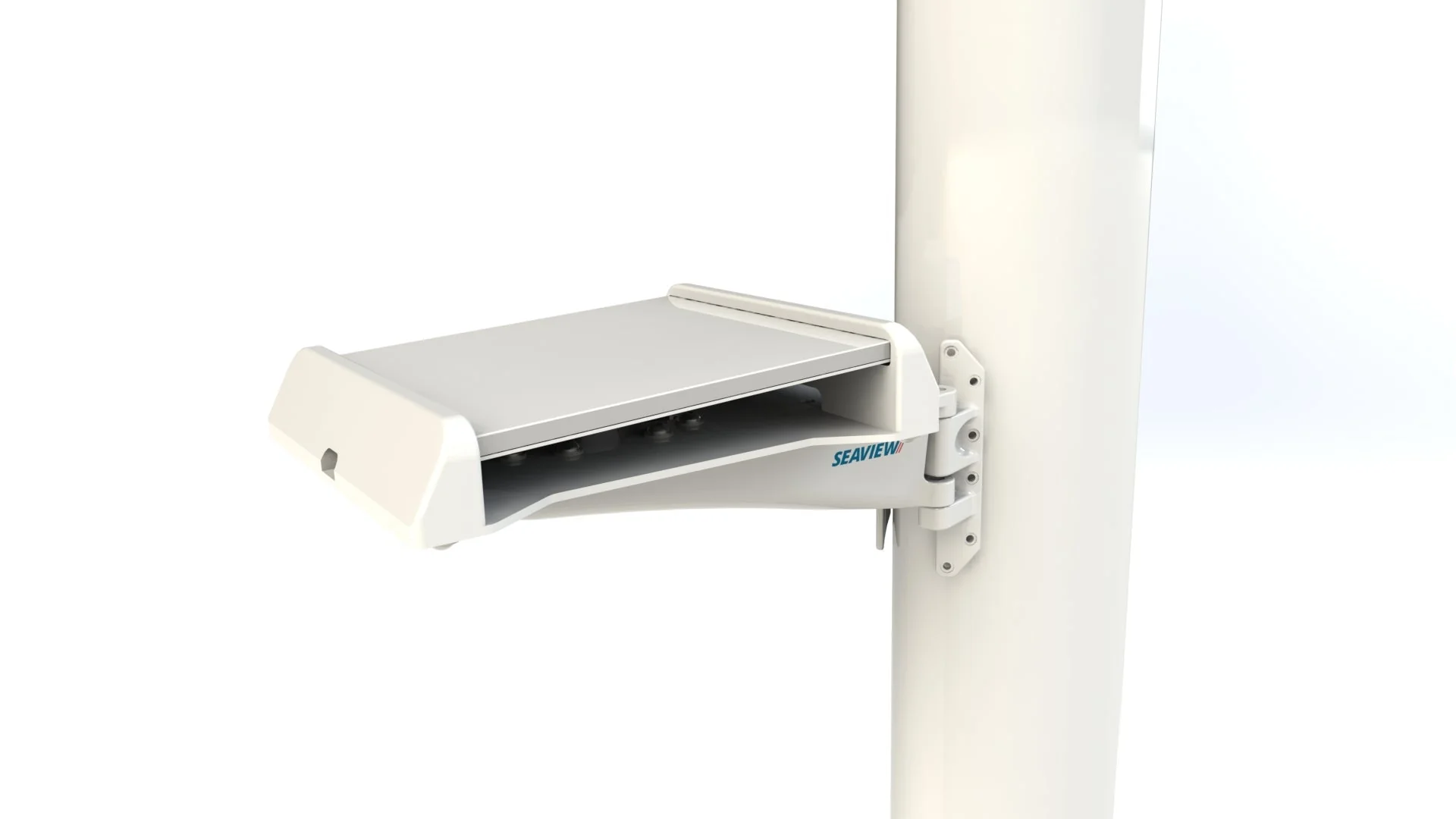

Seaview Mast Mounts are designed to have the radar or satdome as close as possible to the mast. Ultra heavy duty mounting feet and rivets are used to secure the Mast Mount to the mast.
Adjustable
Designed with fore and aft adjustable rails so that you can have the radar as close as possible to the mast.
Incredible Strength
The solid under body construction not only greatly improves strength but also hides radar cables. On certain models.
Accessories
Pre-drilled under body allows for flood lights or horns to be mounted on certain models.
-
Mast Mount Fitting Guide

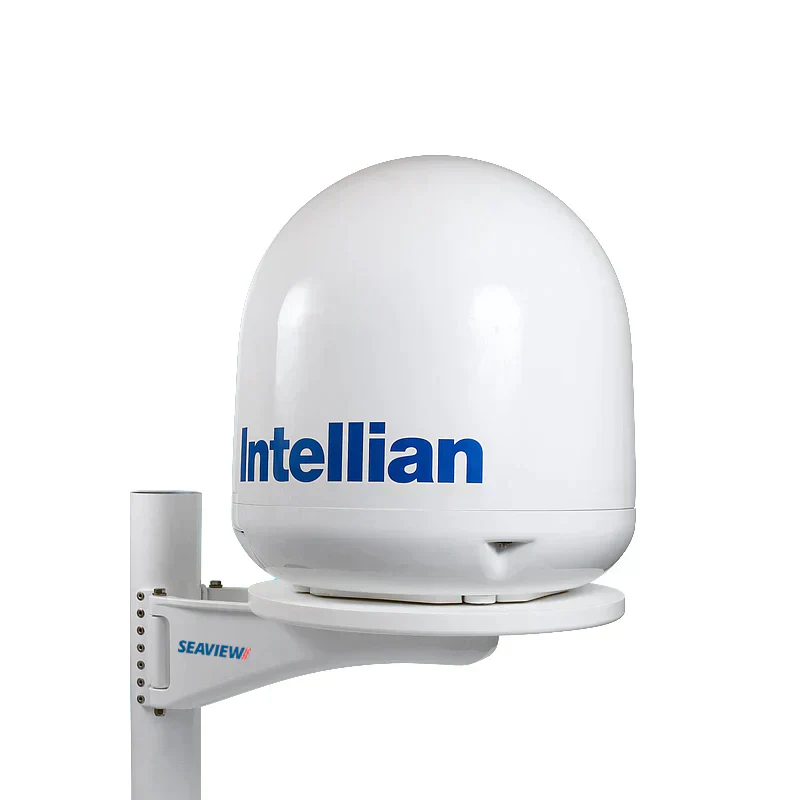

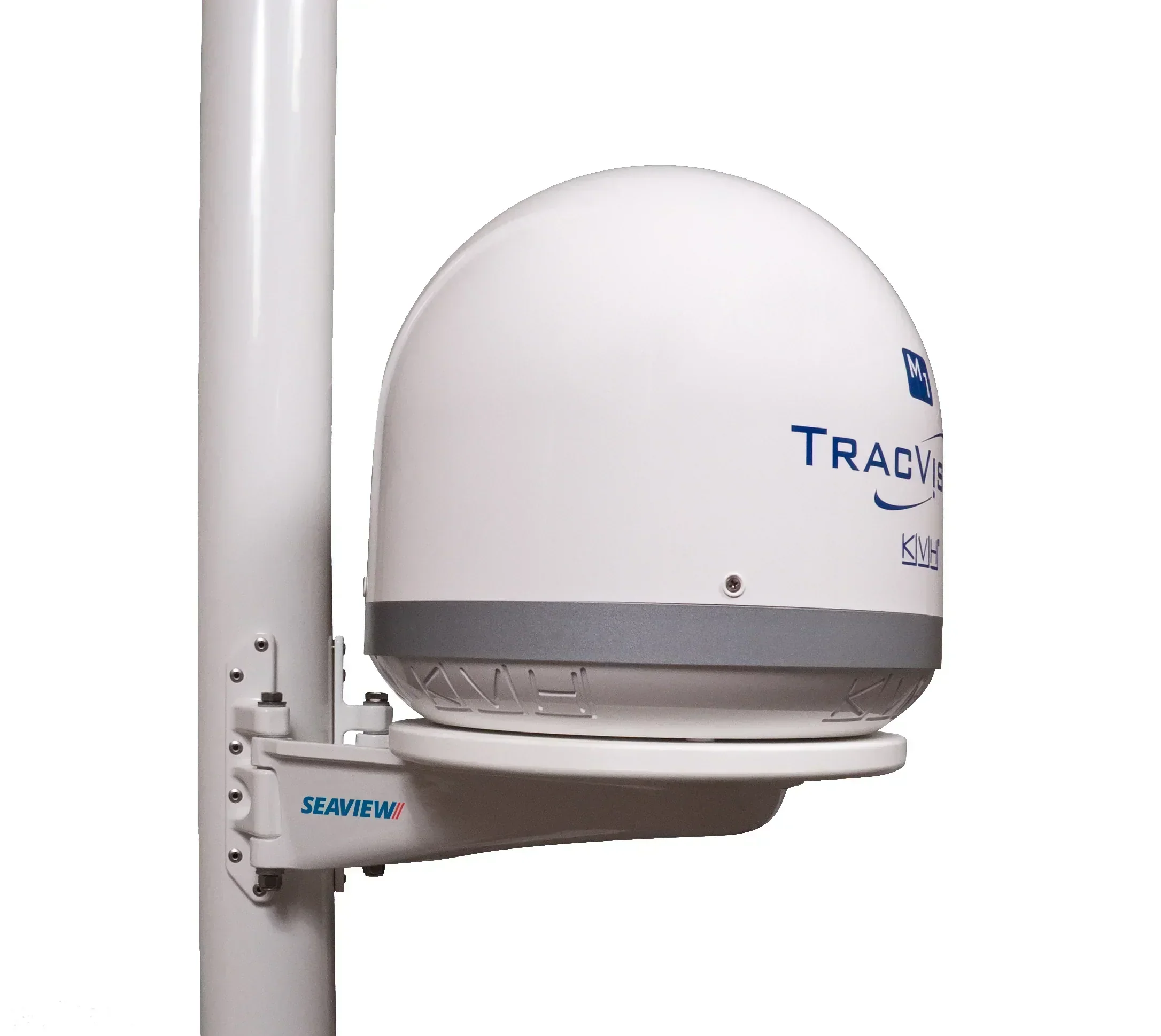

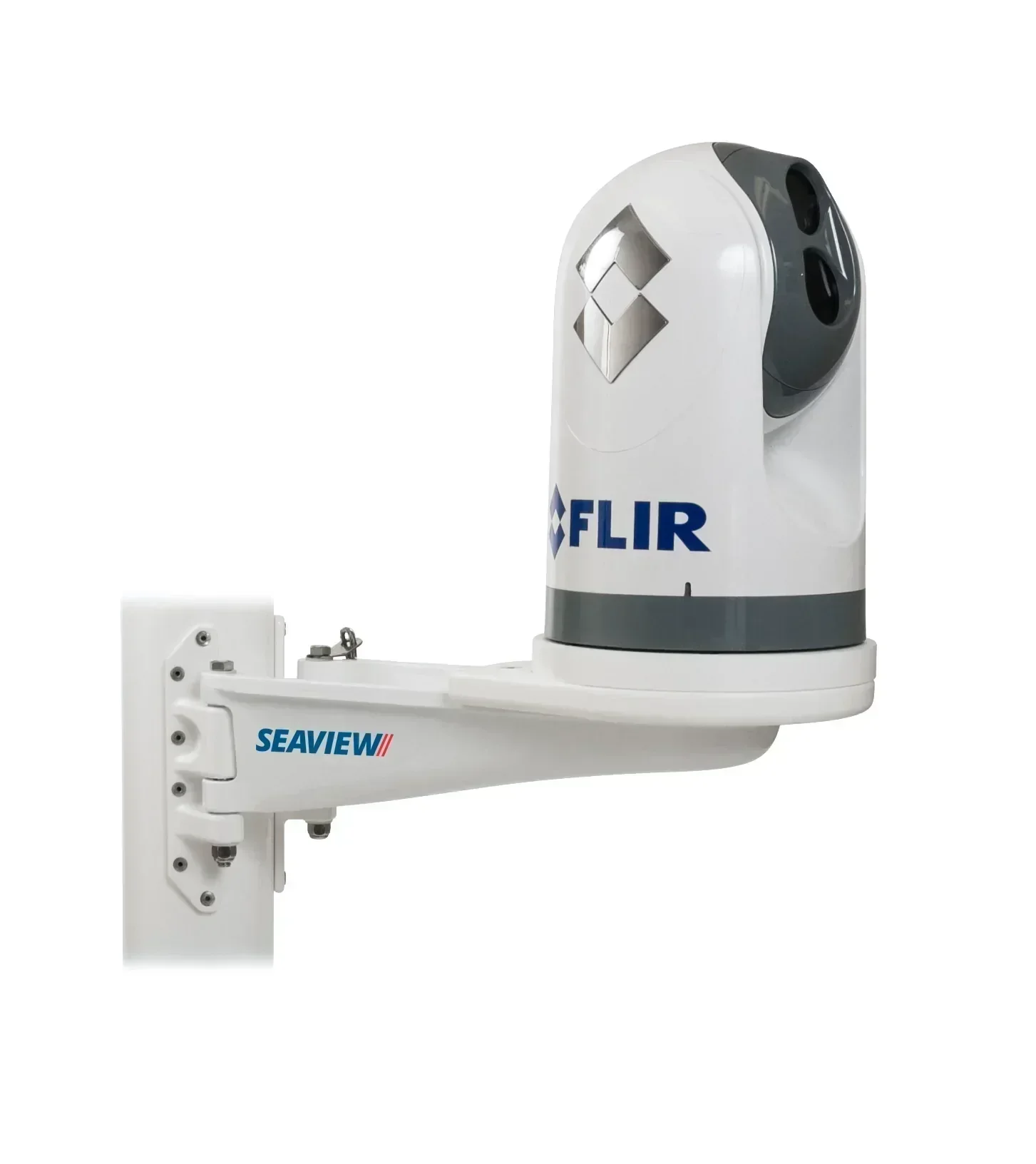

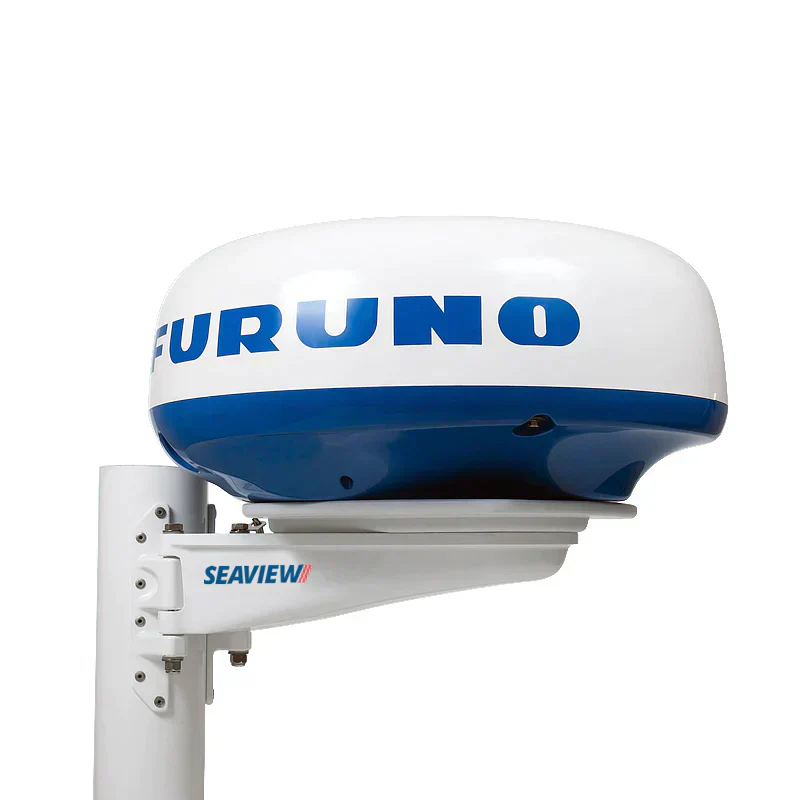

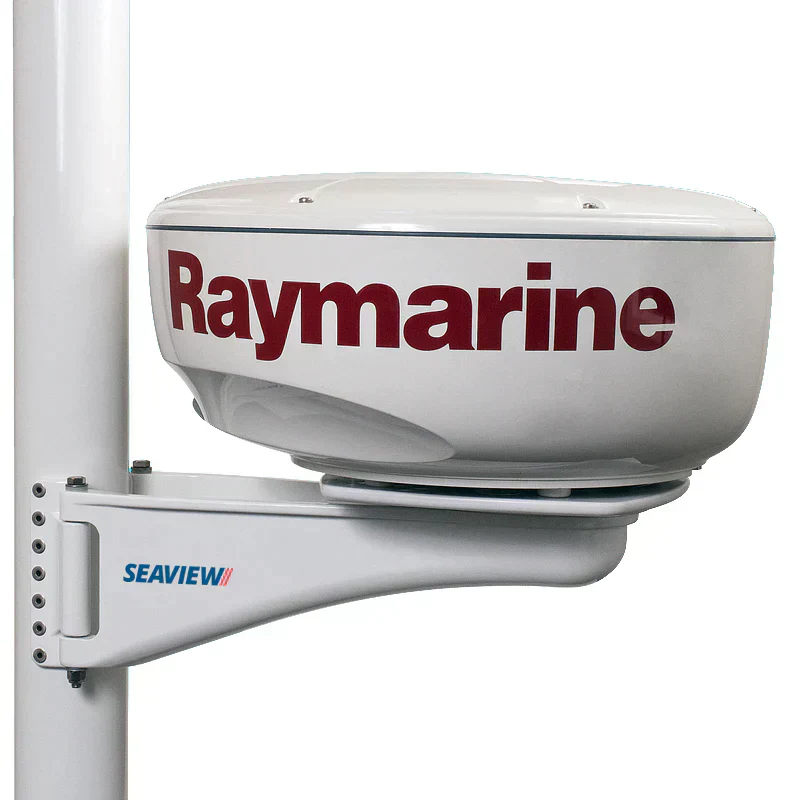

Make & Model Mast Mount Part # FLIR MD-Series, M-Series SM14F FURUNO 15"-18" Radar Domes SM18U 24" Radar Domes SM24U GARMIN Fantom18(x), Fantom24(x), GMR18(HD), GMRx18(HD) SM18R GMR24(HD), GMRx24(HD) SM24U GEONAV 24" Radar Domes SM24U GLOMEX 20"-27" satdomes SM24A HUMMINBIRD HB2124 CHIRP Radar SM18R INTELLIAN i2, i3 SM15A FB150, FB250 SM14A i4, i4P SM18A i5, i6, i6P, S6HD, FB500, v45C SM24A JRC JUE 250, JUE 33 (14") SM14A JUE 500 (24") SM24A JMA-5104, NKE-2042 (24") SM24U KODEN 18" (MDC 900 Series) Radar Domes SM18U 24 (MDC 900 Series) Radar Domes SM24U KVH Fleet33, Fleet One, FB150(10.8"), FB250(14") SM14A M1DX, M1, TV1, M2, M3, M3DX, M3ST, V3, V3-IP, TV3, V3HTS SM15A M5, FB250(18"), TV5 SM18A M7, M7SK, FB500(26"), V7, V7-IP, TV6, HD7, TV3-IP(24") SM24A V30 SM15V30 LORENZ 12"-24" Radar Domes SM18U LOWRANCE 3G, 4G SM18R OYSTER 50MGS, 75MGS, 77MGS, TRX-7MGS SM24A RAYMARINE Quantum, 18" Radar Domes SM18R 24" Radar Domes SM24U 33STV, 37STV SM15A 45STV SM18A 60STV SM24A T200, T300, T400 SM14F SEA TEL / COBHAM ST14, FX150 (16.5") SM18A C18, FX250 (24") SM24A SEIWA / TECH MARINE 12"-24" Radar Domes SM18U SIMRAD 3G, 4G Radar Domes SM18R DX64S SM24U SITEX 18" (T760/T921) Radar Domes SM18U 24" (T761), 25" Radar Domes SM24U STARLINK Standard & High Performance (RV) SM18STLK High Performance Flat Antenna (Marine) SM24U THRANE & THRANE FB150, FB250, Fleet 33, Fleet 33+ SM14A Sailor FB500, Fleet 55+ SM24A VDO Ocean Line 132 SM18U Ocean Line 337 SM18A Ocean Line 345, 360, 445, 460 SM24A
-
Mast Mount Dimensions
SM18R dimensions found here -
A B C D E inch / mm inch / mm inch / mm inch / mm inch / mm SM14A 8.23 / 209 15.9 / 403.1 4.11 / 104.4 7.44 / 189 ≤ 2.63 / 66.68 SM15A 12 / 304.8 16.25 / 412.75 6 / 152.4 6.50 / 165.1 ≤ 2.63 / 66.68 SM18A 18.5 / 469.9 22.75 / 577.85 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08 SM18U 12 / 304.80 15.65 / 397.51 3.44 / 87.4 7.44 / 189 ≤ 2.63 / 66.68 SM18R 11.28 / 286.5 18.01 / 457.5 3.44 / 87.4 7.44 / 189 ≤ 2.63 / 66.68 SM24A 18.50 / 470 25 / 635 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08 SM24U 11.75 / 298.45 20 / 508 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08 SM24R 11.75 / 298.45 20 / 508 6 / 152.4 6.50 / 165.1 ≤ 3.63 / 92.08 -
Seaview Part Number Installation Instructions SM18R Download
